| 제품 이름: | 광섬유 케이블 공기 부는 기계 | 적용 가능한 광케이블 직경: | 0.8~3mm |
|---|---|---|---|
| 적용 가능한 파이프 직경: | 5~8mm | 스러스트 N: | 30N |
| 푸시 속도: | 0 ~ 120m/분 | 배터리: | 12(V)5000mA |

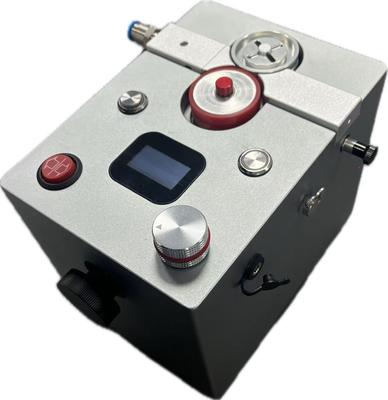

Fiber Optic Cable Air Blowing Machine
Product overview
The fiber optic air blower is suitable for 0.8-3.0mm optical cables and 5-8mm communication microducts. It features a distance and speed counter for better installation control. It also features an intelligent cable protection function. If the cable encounters obstacles or external resistance in the duct, the air blower automatically protects the cable from damage.
| Compatible fiber optic cable outer diameter | 0.8-3.0(mm) |
| Compatible pipe outer diameter | 5-8(mm) |
| Battery | 12(V)5000mA |
| Thrust | 30(N) |
| Maximum speed | 120(m/min) |
| Maximum air pressure | 16(bar) |
| External dimensions of main unit | 204x172x165(mm) |
| Packaging dimensions | 460x290x250(mm) |
| Main unit weight | 4.2(kg) |
| Weight including packaging | 9(kg) |
