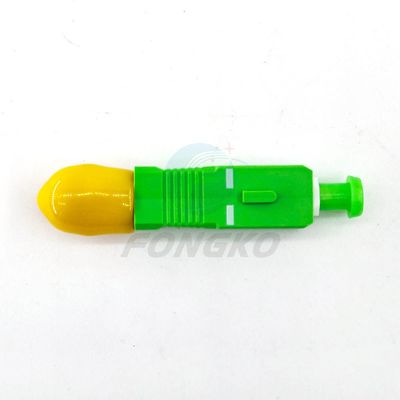

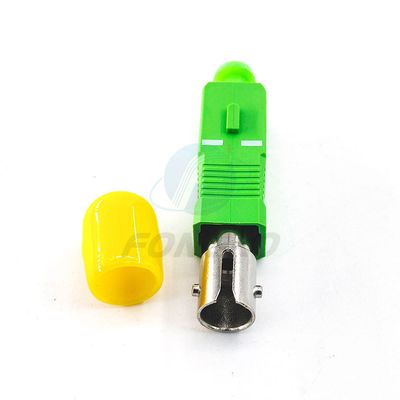

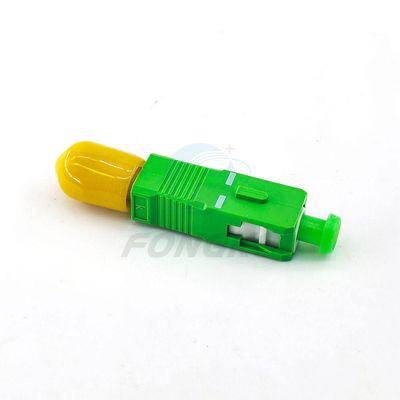

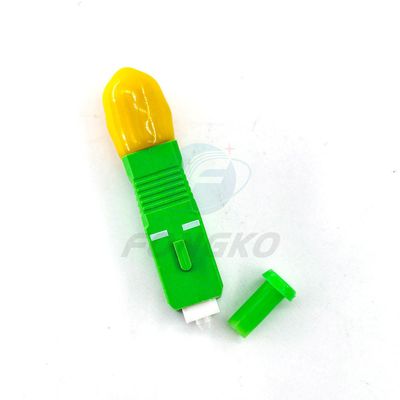

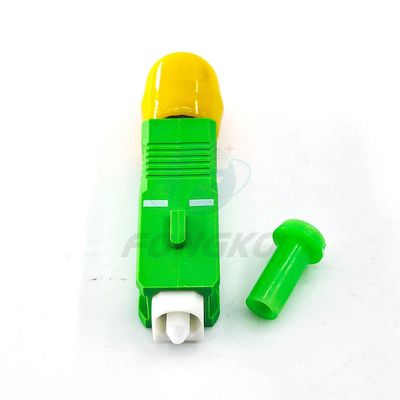

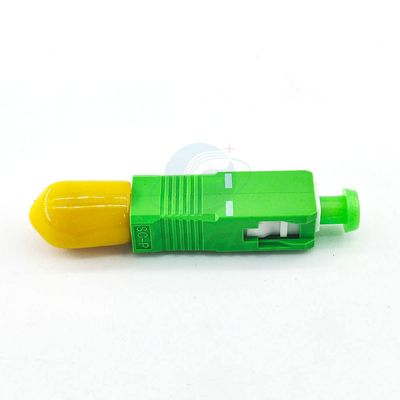

Fiber optic conversion adapter ST/APC female to SC/APC male simplex single mode hybrid adapter

The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
Technical parameter Insertion loss Single mode (sm-9 / 25) ≤ 0.3dB Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB Return loss: PC ≥ 45dB; UPC≥50dB; APC≥60dB Consistency: 0.1dB Operating temperature: - 40 ℃ ~ + 75 ℃ Usage times: ≥ 1000 times Product



1. Convert SC optical fiber connector into SC type optical fiber connector

2. Convert LC type optical fiber interface to LC type optical fiber interface.

3. The male and female terminals shall comply with their corresponding IEC international standards.

4. Embedded optical fiber types such as 9 / 125, 62.5/125 and 50 / 125 can be selected.

5. It can solve the butt joint scheme between UPC and APC with two different shape end faces.

6. The adapter structure is convenient for connection and use.

7. Good interchangeability and reliability.

8. Low insertion loss and high return loss.
